CommandQueue is an asynchronous, thread-safe alternative to the direct File / Artboard / StateMachineInstance API documented elsewhere. Your application thread enqueues commands (load a file, advance a state machine, forward a pointer event) and a CommandServer worker drains them on the render thread. Use it when:
  • Your app and render threads are separate, and you don’t want to cross-thread-call into the direct API.
  • You want a Rive-content thread that’s decoupled from the GPU thread.
  • You need a stable handle-based identity for File / Artboard / StateMachineInstance objects across thread boundaries.
If your render loop and your app logic are already on the same thread, prefer the direct API — CommandQueue adds indirection and listener plumbing you don’t need.

​
Architecture

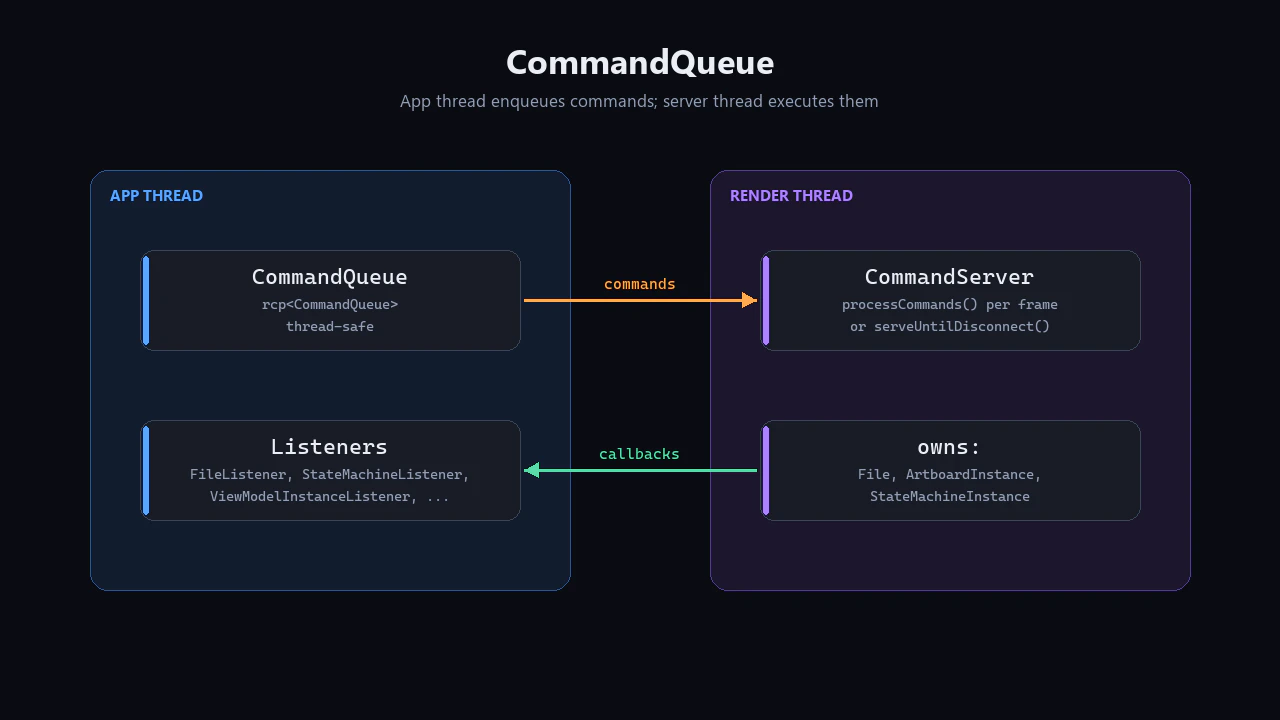

CommandQueue architecture: an app-thread CommandQueue sends commands across to a render-thread CommandServer, which owns the real File, ArtboardInstance, and StateMachineInstance objects; the server returns results to listeners on the app thread.
  • CommandQueue is reference-counted (rcp<CommandQueue>) and thread-safe. The app thread keeps one; the server holds the other end.
  • CommandServer owns the real File, ArtboardInstance, and StateMachineInstance objects. They never escape the render thread.
  • All cross-thread identifiers are typed handles: FileHandle, ArtboardHandle, StateMachineHandle, ViewModelInstanceHandle, RenderImageHandle, FontHandle, AudioSourceHandle. The app thread holds handles; the server resolves them to real objects.
  • Async results (file loaded, state machine settled, image decoded) come back via listener callbacks registered against handles.

​
Setting Up the Queue and Server

#include "rive/command_queue.hpp"
#include "rive/command_server.hpp"

// Shared between threads.
rcp<CommandQueue> queue = make_rcp<CommandQueue>();
On the render thread, create a CommandServer and pump it:
// `factory` is your Factory* — usually your RenderContext.
CommandServer server(queue, factory);

// Drain pending commands once per frame...
server.processCommands();

// ...or block on a dedicated thread until disconnect.
// server.serveUntilDisconnect();
processCommands() is non-blocking — call it before each frame. serveUntilDisconnect() is the run-loop variant for a worker thread: blocks waiting for commands, and returns when the app thread calls queue->disconnect().

​
Loading a File and Creating a State Machine

All these calls happen on the app thread. They enqueue commands and return handles immediately — the actual work happens on the server thread.
std::vector<uint8_t> rivBytes = readFile("hero.riv");

FileHandle file = queue->loadFile(std::move(rivBytes));
ArtboardHandle artboard = queue->instantiateDefaultArtboard(file);
StateMachineHandle sm   = queue->instantiateDefaultStateMachine(artboard);
The handles are valid to use immediately even though the load hasn’t happened yet — subsequent commands queued against them will execute in order on the server.

​
Advancing and Drawing

// App thread:
queue->advanceStateMachine(sm, /* dt = */ 1.f / 60.f);
Drawing is handled differently — you register a draw callback that runs on the server thread when the queue tells it to. Pattern: create a draw key, attach a callback, then tell the server to run that key. See the CommandQueue::drawCallback and runDraw methods in command_queue.hpp for the full draw-callback API; the canonical example is the command-queue D3D11 sample in the rive monorepo (packages/sample_win32_d3d11_cq/).

​
Async Results: Listeners

Because commands run asynchronously, results come back via listener callbacks. Each handle type has a matching listener with on… methods:
class MyFileListener : public CommandQueue::FileListener
{
public:
    void onFileLoaded(const FileHandle, uint64_t requestId) override
    {
        // Safe to instantiate artboards now, etc.
    }
};

MyFileListener listener;
listener.attach(queue, file);   // register against this handle
Listeners available include:
  • FileListener — onFileLoaded, onFileDeleted, onArtboardsListed, onViewModelsListed, …
  • ArtboardListener — onArtboardInstanced, onArtboardError, onArtboardDeleted.
  • StateMachineListener — onStateMachineInstanced, onStateMachineSettled (called on the request that caused the state machine to settle), …
  • ViewModelInstanceListener, RenderImageListener, FontListener, AudioSourceListener — for the other resource types.
requestId lets you correlate callbacks with specific commands. Pass a non-zero requestId to the queue methods that accept one (e.g. deleteFile(handle, requestId)) and your listener will receive the same ID back.

​
Pointer Events

Pointer events go through the queue too. CommandQueue::PointerEvent carries the screen-space position; the server converts it to artboard space using the state machine’s most recent transform:
CommandQueue::PointerEvent ev;
ev.position = { mouseX, mouseY };
ev.kind = CommandQueue::PointerEvent::Kind::move;
queue->queuePointerEvent(sm, ev);

​
Teardown

The app thread tells the server to stop:
queue->disconnect();
If the server is running serveUntilDisconnect(), that call returns when the disconnect command arrives. After that, joining the server thread is your responsibility. Resource handles are cleaned up by enqueuing explicit delete commands (or letting the server destructor reap them):
queue->deleteStateMachine(sm);
queue->deleteArtboard(artboard);
queue->deleteFile(file);

​
When to Use the Direct API Instead

The direct File / Artboard / StateMachineInstance API documented in the other pages on this site is simpler when:
  • Your app already drives Rive from the render thread.
  • You don’t need handle-based identity across threads.
  • You want synchronous return values rather than listener callbacks.
CommandQueue exists for the multithreaded case — it’s the right tool for engines, render servers, and apps with a dedicated GPU thread.
